A complete range of telemetry receivers connecting to pan-tilt head devices, operating at fixed or variable speeds and offering different maximum loads. The range is designed for both internal and external use. Models allow simple connection and control via matrix switching systems and keyboards, including setting and calling preset positions, and variable speed controls.

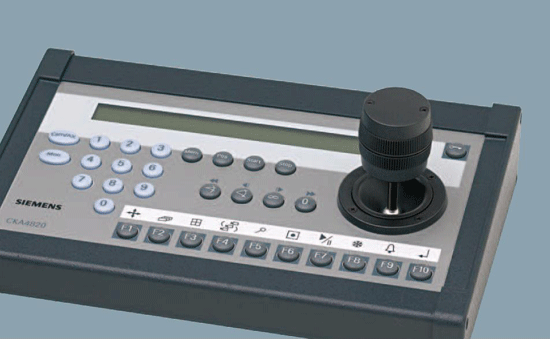

CKA4820 - Variable Speed Pan-Tilt-Zoom Controller, LCD and 3-Axis Joystick
Telemetry interface for direct connection of the following peripheral devices:
SISTORE AX4, 9 and 16
Speed domes CCDA1410 and CCDA1415
Dome converters CAC0101, CAC0102, CAC0103
Control units for pan-tilt heads CDC0501, CDC0502
Pan-tilt head CDD2410
Control unit interface for connection to the following devices:
SIMATRIX 164, 648, SYS and Neo
SISTORE AX4, 9 and 16
IVM Terminal Client
31 keys, including 10 function keys which can be parameterised; a film strip with function symbols which can be inserted above the F keys is scope of supply
Triaxial joystick for remote control of cameras with pan-tilt drive and control of lens functions
Variable speed control for CCDA14xx dome and for CDD2410 PTZ. Enables both direct control and control via SIMATRIX164, 648, Neo and SYS video crossbars
The CKA4820 is designed as a desktop unit. It is used for the direct control of cameras with pan-tilt drives and to control functional lenses and peripheral devices. The CKA4820 also allows decentralised control via SIMATRIX 164 / 648 / SYS / Neo or SISTORE AX4, 9, 16. Peripheral devices attached to the unit can be controlled with variable speed instructions. This function is not available for peripheral devices that are attached to SISTORE AX.
