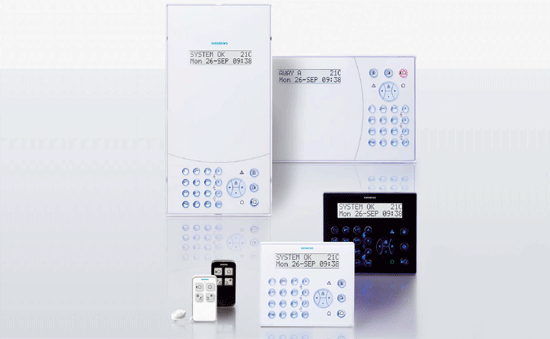

Specifically designed by Siemens for the home and small business environments, this multi-functional alarm system combines security, safety and comfort functionality, making it the right choice for anyone looking for intelligent intruder detection, total safety and ultimate convenience. Its stylish control panel and keypad are at the heart of the system, whether wired or wireless: SMS alerts, water leak detection or even lighting control are just a few of the functionalities IC60 offers, so you are sure that wherever you are, your home or business are in safe hands. Simply and reliably.

The IC60 compact control panels are well suited for smaller homes or offices, or wireless installations. The panel with integrated LCD keypad can be mounted horizontally or vertically for ultimate flexibility and adaptability to the space available. Slimline and stylish design. Available in different colours. 8 to 16 wired or wireless zones (max. 8 wired zones). Home control functions through programmable outputs. Integrated dialer with up to 8 telephone numbers.

- IC60-8: 8 zones incl. LCD‚ AC / DC converter‚ no battery
- IC60W-10: 8 - 16 zones incl. LCD‚ with wireless receiver‚ AC/DC
converter‚ no battery.
- IC60WA-10: 8 - 16 zones incl. LCD‚ with wireless receiver‚ AC/DC
converter‚ no battery‚ audio verification module

The IC60 control panel can also be delivered in a more traditional modular design with a small box containing the power supply and the battery. This product is recommended only for wired installations where space for a bigger backup battery is needed.

- IC60M-8: 8 zones - external keypad required.

Assorted sets of coloured Lexan inlays for IC60 compact control panels are available for both horizontal and vertical mount options. Each set also includes 1 opaque keypad button fascia. 8 assorted colours available for a personnalised and stylish look and feel.

Available coulours: black, purple, silver, dark wood effect, yellow, light blue, light green and peach.

For details click here

Kit packaging IC60 compact or modular panel with 8-16 hardwired orwireless zones (868MHz) ‚ incl. power supply‚ no back up battery (needto be ordered seperately). These kits are available in various options of ready to go units. Additionally these kits include various numbers of wireless or wired devices. Delivered in a practical kit package with additional documentation such as a user manual in 12 languages‚ quick start guide and a CD with all technical data‚ programming software and manuals (incl. box with accessories like screws‚ anchors‚ resistors and batteries for all components) .

These kits are the perfect solution for quick installations and contain all the material needed to build a small security system.

Kit packaging IC60 modular control panel in big ABS housing for separate mounting‚ incl. transformer‚ external white keypad IKP6-03 with big LCD display‚ no battery. Useable for lead acid battery of 1.3 AH 12V-7.5AH 12V.  Additionally the kit includes 3x IR80 wired PIR motion detectors.





(This picture is for illustration only and is not necessarily representitative of the kit presented. Always check the kit specifications for exact kit content)

Kit packaging IC60 compact panel - wireless receiver already built in‚ incl. AC/DC converter for 110-250V/ 50-60Hz. Additionally the kit includes 3x IR80 wired PIR motion detectors and 1 wireless remote control IRCW6.







(This picture is for illustration only and is not necessarily representitative of the kit presented. Always check the kit specifications for exact kit content)

Kit packaging IC60 compact panel - wireless receiver and 2 way voice-audio verification module IAV6-90 for audio alarm verification and "listen in" functionality, incl. AC/DC converter for 110-250V/ 50-60Hz.
Additionally the kit includes 2 wireless PIR motion detectors IR60W6‚ 1 wireless magnetic contact IMKW6 and 1 wireless remote control IRCW6.




(This picture is for illustration only and is not necessarily representitative of the kit presented. Always check the kit specifications for exact kit content)

Kit packaging IC60 compact panel - wireless receiver already built in‚ incl. AC/DC converter for 110-250V/ 50-60Hz. Additionally the kit includes 3 wireless PIR motion detectors IR60W6 and 1 wireless remote control IRCW6.





(This picture is for illustration only and is not necessarily representitative of the kit presented. Always check the kit specifications for exact kit content)

Kit packaging IC60 compact panel - wireless receiver already built in‚ incl. AC/DC converter for 110-250V/ 50-60Hz. Additionally the kit includes 2 wireless PIR motion detectors IR60W6‚ 1 wireless magnetic contact IMKW6 and 1 wireless remote control IRCW6.




(This picture is for illustration only and is not necessarily representitative of the kit presented. Always check the kit specifications for exact kit content)

The keypad benefits from a stylish and slim-line design. The glossy finish‚ the crystal clear buttons and the black color will cater for every style and taste. The IKP6-03 is equipped with an extra large 2-line display‚ each line consisting of 16 characters. The display and keys are backlit‚ and the intensity of the illumination‚ as well as the volume of the signal tones can be individually adjusted. The 5 LED’s display the most important system statuses such as “ready”‚ “trouble”‚ “stay at home”‚ “bypass”and “armed”. The keypad layout mirrors the familiar telephone dials for ultimate user-friendliness ‚ and clearly shows separate emergency call buttons. A room temperature indication is also integrated.

The keypad benefits from a stylish and slim-line design. The glossy finish‚ the crystal clear buttons and the black color will cater for every style and taste. The IKP6-03B is equipped with an extra large 2-line display‚ each line consisting of 16 characters. The display and keys are backlit‚ and the intensity of the illumination‚ as well as the volume of the signal tones can be individually adjusted. The 5 LED’s display the most important system statuses such as “ready”‚ “trouble”‚ “stay at home”‚ “bypass”and “armed”. The keypad layout mirrors the familiar telephone dials for ultimate user-friendliness ‚ and clearly shows separate emergency call buttons. A room temperature indication is also integrated.

The IRCW6-10 remote control has an elegant and stylish design. With the remote control the IC60 system can be activated or deactivated without a code. It is secured with an individual 24 Bit encrypted code transmission and it is small enough to be used on a key ring. Additional integrated functions enable the remote operation of other devices such as lights‚ garage doors‚ etc. In addition‚ police or medical assistance can be requested through the integrated panic button.

The IRCW6-10B remote control has an elegant and stylish design. With the remote control the IC60 system can be activated or deactivated without a code. It is secured with an individual 24 Bit encrypted code transmission and it is small enough to be used on a key ring. Additional integrated functions enable the remote operation of other devices such as lights‚ garage doors‚ etc. In addition‚ police or medical assistance can be requested through the integrated panic button.

The set consists of 10 different coloured remote controls.

Colours: black‚ reflex blue‚ purple‚ red‚ green‚ pink‚ yellow‚ orange‚ light blue‚ lightgreen.

With its flat and compact design this card reader fits in seamlessly with the stylish design line of the IC60 range. It can be connected directly to the central bus and can operate as a keypad (without programming). All existing standard tags/cards with a 125 KHz operating frequency can be used and registered to the IC60‚ on site or remotely (max. 100 users in total).

The GSM module works as a backup transmission unit if the telephone line is down. Furthermore‚ it enables SMS messages to be sent to pre-programmed mobile phone numbers‚ giving information about the current situation at home or in the office. Voice transmission is not supported.

This module works as a two-way voice verification module and enables the control panel to be used as a communication point. This enables alarms to be verified by listening-in‚ a functionality normally required by Central Monitoring Stations (CMS) to reduce the cost of false alarms.The “listen-in” function can be activated from the outside with a security pin code or automatically in case of an alarm. In case of a medical emergency, the operator can talk directly to the person in need. Several audio messages with a total length of up to 90 seconds can also be recorded with the integrated microphone‚ then stored and individually programmed for broadcast via the loudspeaker in case of an alarm. This unit works with the IC60 compact version only.

The IRFW6-10 is an internal RF Receiver Module (868MHz) for IC60. When built into the control panel‚ the receiver module is able to operate 16 wireless devices from the IC60 product range‚ and up to 16 remote controls. The signal is transmitted within a secured frequency range (868 MHz in Europe)‚ with encrypted information. If the frequency is blocked or jammed‚ an alarm signal will be generated. To overcome transmission problems, an additional receiver module can be mounted externally and connected to the central bus.

The IRFW6-12 is a Si2Way radio module which is required for IC60 panels communication with Si2Way devices (e.g. outdoor siren). It should be mounted internally into the panel.

With this unit‚ 4 additional wired zones can be connected to the IC60 control panel. The module can be integrated within the control panel(modular version) or mounted externally (compact version) to save cabling via a connection to the terminal block of the inputs. Up to 4 modules can be used with one IC60 panel (e.g. max 16 wired zones).

The IR06-04 is an external relay output module for IC60 with 4 Relays(12V/1A). With this unit, 4 additional output relays can be connected to the IC60 control panel. The module can be mounted externally to save cabling‚ via a connection to the central bus (modular version). UP to 2 modules can be used with each IC60 panel (e.g. max. 8 programmable outputs).

IC60 offers a wide range of modules and accessories to help tailor the system functionality based on the application and requirements. these include optional voice, GSM and receiver modules that can be built in to the compact control panel or keypads (modular configuration). These modules extend the configuration and system customisation possibilities to deliver increased security and safety at home.

The IVK-6 is a vertical mounting Kit for IC60. This kit contains an additional white front cover and an additional vertical keypad with buttons‚ to be exchanged with the existing horizontal button keypad version. These two parts are necessary to convert the IC60 compact into a vertical panel. No additional material is needed. Different colours are available for vertical and horizontal mounting options (see below).
For compact panel versions only.

Vertical mounting set with 8 samples of different coloured Lexan covers and 1 milky buttons for vertical mounting. One piece includes 8 parts.The sets include the following colors: black (Pantone black)‚ purple (Pantone 220C)‚ silver (Pantone 877)‚ dark wood‚ yellow (Pantone1205)‚ light blue (Pantone 290)‚ light green (Pantone 372) and peach (Pantone 148).
For compact panel versions only.

Horizontal mounting set with 5 pcs of Lexan covers. One set includes 5 Lexan covers of the same colour. For compact panel versions only.

- IHK6-05L: Light blue
- IHK6-05G: Green
- IHK6-05V: Violet
- IHK6-05P: Peach
- IHK6-05Y: Yellow
- IHK6-05S: Silver
- IHK6-05W: Wood
- IHK6-05B: Black

5 x buttons for mounting in a IC60 compact panel for vertical mounting direction‚ with printing of characters in horizontal direction. Available in 3 different color versions. Black‚ White and Milky which is colour neutral and can fit to every colour of the IC60 control panel.

- IHB-6B: Black buttons
- IHB-6M: Milky buttons
- IHB-6W: White buttons

5 x buttons for mounting in a IC60 compact panel for horizontal mounting direction‚ with printing of characters in vertictal direction. Available in 3 different color versions. Black‚ White and Milky which is colour neutral and can fit to every colour of the IC60 control panel.

The memory stick enables a quick on-site programming‚ with easy up or download of special customer default settings. The memory stick can store one default setting for one IC60 panel.

The connection cable enables direct connection between a PC and the IC60 control panel for direct programming and printing of the memory log. The product consists of a standard mini USB cable and a special IC60 communication interface connector.
