Outdoor Housings
- Overview
-
- CHSM2510 - Camera Housing 300 mm, IP66, 1 x M12, 1 x M16, 1 x M20
- CHSL2610 - Camera Housing 320 mm, IP66, 1 x M12, 1 x M16, 1 x M20
- CHSL4010 - Large Camera Housing‚ 110 - 230 V AC
- CHSL4011 - Large Camera Housing‚ 12 - 24 V AC
- CHSM2210 - Medium Camera Housing‚ 110 - 230 V AC
- CHSM2211 - Medium Camera Housing‚ 12 - 24 V AC
- CHSM2210-B - Medium Camera Housing, Integral Bracket‚ 110 - 230 V AC
- CHSM2211-B - Medium Camera Housing, Integral Bracket‚ 12 - 24 V AC

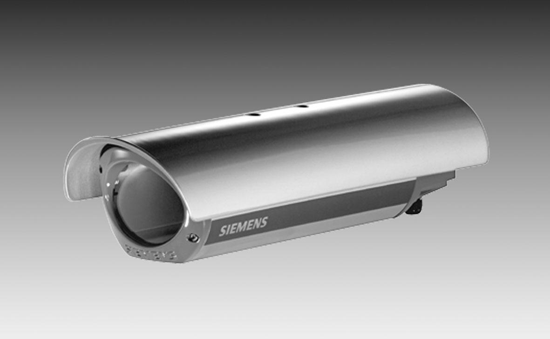

CHSM2510 - Camera Housing 300 mm, IP66, 1 x M12, 1 x M16, 1 x M20
-
Material of the housing cover: corrosion-resistant aluminum
-
Material of the sun shield: anti-reflecting polymer (ABS)
-
Material of front and end caps: polycarbonate
-
Integrated heater to prevent condensation on the pane
-
Space-efficient integration of power supply units
-
Simple installation of a twisted pair transmitter
-
IP66 with the use of the metric screwed cable glands provided
-
Concealed cable with the use of the CHBC2010
The all-purpose protective aluminum camera housing with sun shield and integrated heating is of the Siemens design. All current Siemens cameras with Siemens fixed or vario lenses fit in this housing.
The protective housing is suited for permanent mounting with the available wall arms or for direct mounting on a pan-tilt head.
The housing cover is easy to remove, facilitating on-site installation and cabling of the camera with lens. Space is provided in the housing for installation of a twisted pair transmitter.
The power supplies for cameras and accessories can be installed in the back of the housing to save space.
CHSL2610 - Camera Housing 320 mm, IP66, 1 x M12, 1 x M16, 1 x M20
-
Die-cast corrosion-resistant aluminum housing
-
Siemens corporate design
-
Integrated heater to prevent condensation on the pane
-
Space-efficient integration of power supply units
-
Simple installation of a twisted pair transmitter or fiber optic module
-
IP66 with the use of the metric screwed cable glands provided
-
Concealed cable with the use of the CHBC2010 wall arm
The all-purpose protective aluminum camera housing with sun shield and integrated heating is of the Siemens design. All current Siemens cameras with Siemens fixed, vario or zoom lenses fit in this housing.
The protective housing is suited for permanent mounting with the available wall arms or for direct mounting on a pan and tilt head. The housing cover is easy to remove, facilitating on-site installation and cabling of the camera with lens. Space is provided in the housing for installation of a twisted pair transmitter or fiber optic module.
The power supplies for cameras and accessories can be installed in the back of the housing to save space.
CHSL4010 - Large Camera Housing‚ 110 - 230 V AC
-
Washer/wiper unit available as an option
-
Integrated heater to prevent condensation on the front window
-
Protection rating IP66 for outdoor use
-
Siemens corporate design
The multi-purpose protective camera housing in Siemens design is made of aluminium and equipped with a sunshield and integrated heater. The housing can accommodate all current Siemens cameras with fixed focus, varifocal or zoom lenses.
The protective housing can either be fixedly installed using one of the available wall brackets or mounted on a pan-and-tilt head. The housing cover is easy to remove, facilitating on-site installation and cabling of the camera with lens.
CHSL4011 - Large Camera Housing‚ 12 - 24 V AC
-
Washer/wiper unit available as an option
-
Integrated heater to prevent condensation on the front window
-
Protection rating IP66 for outdoor use
-
Siemens corporate design
The multi-purpose protective camera housing in Siemens design is made of aluminium and equipped with a sunshield and integrated heater. The housing can accommodate all current Siemens cameras with fixed focus, varifocal or zoom lenses.
The protective housing can either be fixedly installed using one of the available wall brackets or mounted on a pan-and-tilt head. The housing cover is easy to remove, facilitating on-site installation and cabling of the camera with lens.
CHSM2210 - Medium Camera Housing‚ 110 - 230 V AC
-
Integrated heater to prevent condensation on the front window
-
Protection rating IP66 for outdoor use
-
Siemens corporate design
The multi-purpose protective camera housing in Siemens design is made of aluminium and equipped with a sunshield and integrated heater. It can accommodate all current Siemens cameras with fixed focus or varifocal lenses.
The protective housing can either be fixedly installed using one of the available wall brackets or mounted on a pan-and-tilt head. The housing cover is easy to remove, facilitating on-site installation and cabling of the camera with lens.
CHSM2211 - Medium Camera Housing‚ 12 - 24 V AC
-
Integrated heater to prevent condensation on the front window
-
Protection rating IP66 for outdoor use
-
Siemens corporate design
The multi-purpose protective camera housing in Siemens design is made of aluminium and equipped with a sunshield and integrated heater. It can accommodate all current Siemens cameras with fixed focus or varifocal lenses.
The protective housing can either be fixedly installed using one of the available wall brackets or mounted on a pan-and-tilt head. The housing cover is easy to remove, facilitating on-site installation and cabling of the camera with lens.
CHSM2210-B - Medium Camera Housing, Integral Bracket‚ 110 - 230 V AC
-
Integrated bracket with internal cable channel
-
For wall mounting; ceiling mount bracket available as an option
-
Integrated heater to prevent condensation on the front window
-
Protection rating IP66 for outdoor use
-
Siemens corporate design
The multi-purpose protective camera housing in Siemens design is made of aluminium and equipped with a sunshield and integrated heater. It can accommodate all current Siemens cameras with fixed focus or varifocal lenses.
The housing has an integrated mounting bracket allowing the cables to be run inside. It is designed for wall mounting; a ceiling mount bracket is available as an option. The housing cover is easy to remove, facilitating on-site installation and cabling of the camera with lens.
CHSM2211-B - Medium Camera Housing, Integral Bracket‚ 12 - 24 V AC
-
Integrated bracket with internal cable channel
-
For wall mounting; ceiling mount bracket available as an option
-
Integrated heater to prevent condensation on the front window
-
Protection rating IP66 for outdoor use
-
Siemens corporate design
The multi-purpose protective camera housing in Siemens design is made of aluminium and equipped with a sunshield and integrated heater. It can accommodate all current Siemens cameras with fixed focus or varifocal lenses.
The housing has an integrated mounting bracket allowing the cables to be run inside. It is designed for wall mounting; a ceiling mount bracket is available as an option. The housing cover is easy to remove, facilitating on-site installation and cabling of the camera with lens.
