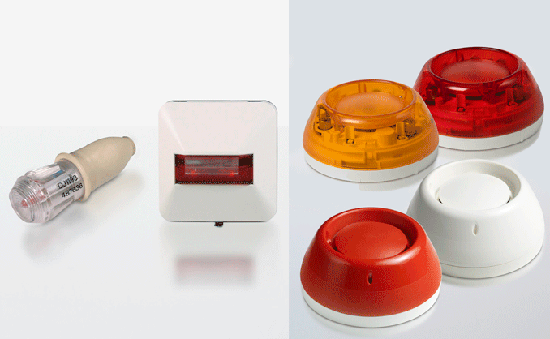

Alarm Cihazları
Alarm sirenleri, akustik ve optik alarm sinyali üreten cihazlardır. Bütün sirenler tahliyede dahil olmak üzere DIN 33404-3'e göre ön alarm ve alarmlar için 11 değişik şiddette ve tonda sesler üretebilir.
FDS221-R - ADRESLİ ALARM SİRENİ (KIRMIZI)
Özellikleri
Standard
EN54-3, EN54-17
Protection category
With base FDB221 and base attachment FDB291 mounting on the wall with cable feed from bottom -> IP43, otherwise IP40. With base FDB221 and sealing element FDBZ295 -> IP44. With base attachment humid FDB293 -> IP54.
Operating voltage
12... 33 VDC
Operating temperature
-25... +70 °C
Operating current
3.5 mA (sound activated)
Storage temperature
-30... +75 °C
Quiescent current
250 μA
Terminals
according to detector base
Sound intensity
80... 99 dBA
Relative humidity
≤95 %
Communication protocol
FDnet/C-NET
Number of sounds
11
Ext. alarm indicator
2
System compatibility
FDnet -> FS20, AlgoRex, SIGMASYS C-NET -> FS720
Color
red, ∼RAL 3000
FDS221-W - ADRESLİ ALARM SİRENİ (BEYAZ)
Özellikleri
Standard
EN54-3, EN54-17
Protection category
With base FDB221 and base attachment FDB291 mounting on the wall with cable feed from bottom -> IP43, otherwise IP40. With base FDB221 and sealing element FDBZ295 -> IP44. With base attachment humid FDB293 -> IP54.
Operating voltage
12... 33 VDC
Operating temperature
-25... +70 °C
Operating current
3.5 mA (sound activated)
Storage temperature
-30... +75 °C
Quiescent current
250 μA
Terminals
according to detector base
Sound intensity
80... 99 dBA
Relative humidity
≤95 %
Communication protocol
FDnet/C-NET
Number of sounds
11
Ext. alarm indicator
2
System compatibility
FDnet -> FS20, AlgoRex, SIGMASYS C-NET -> FS720
Color
white, ∼RAL 9010
FDS229-R - ADRESLİ FLAŞÖRLÜ ALARM SİRENİ (KIRMIZI)
Özellikleri
Standard
EN54-3, EN54-17
Protection category
With base FDB221 and base attachment FDB291 mounting on the wall with cable feed from bottom -> IP43, otherwise IP42. With base FDB221 and sealing element FDBZ295 -> IP44. With base attachment humid FDB293 -> IP54.
Number of flashing pattern
1 (intermittent)
Operating voltage
12... 33 VDC
Operating temperature
-25... +55 °C
Operating current
3.5 mA (sound activated) 3.5 mA (beacon activated) 7.0 mA (sound and beacon activated)
Storage temperature
-30... +75 °C
Quiescent current
250 μA
Terminals
according to detector base
Sound intensity
80... 99 dBA
Light intensity
1.27... 3.2 cd
Relative humidity
≤95 %
Communication protocol
FDnet/C-NET
Number of sounds
11
Ext. alarm indicator
2
System compatibility
FDnet -> FS20, AlgoRex, SIGMASYS C-NET -> FS720
Color
transparent red
FDS229-A - ADRESLİ FLAŞÖRLÜ ALARM SİRENİ (TURUNCU)
Özellikleri
Standard
EN54-3, EN54-17
Protection category
With base FDB221 and base attachment FDB291 mounting on the wall with cable feed from bottom -> IP43, otherwise IP42. With base FDB221 and sealing element FDBZ295 -> IP44. With base attachment humid FDB293 -> IP54.
Number of flashing pattern
1 (intermittent)
Operating voltage
12... 33 VDC
Operating temperature
-25... +65 °C
Operating current
3.5 mA (sound activated) 3.5 mA (beacon activated) 7.0 mA (sound and beacon activated)
Storage temperature
-30... +75 °C
Quiescent current
250 μA
Terminals
according to detector base
Sound intensity
80... 99 dBA
Light intensity
1.1… 2.8 cd
Relative humidity
≤95 %
Communication protocol
FDnet/C-NET
Number of sounds
11
Ext. alarm indicator
2
System compatibility
FDnet -> FS20, AlgoRex, SIGMASYS C-NET -> FS720
Color
transparent orange
DBS720 - SİRENLİ DEDEKTÖR SOKETİ
Özellikleri
Standard
EN54-3
Protection category
IP41 IP42 with detector base seal RS720
Operating voltage
12... 33 VDC
Operating temperature
-25... +70 °C
Storage temperature
-30... +70 °C
Sound intensity
80... 88 dBA
Cable capacity
0.2... 1.6 mm2
Relative humidity
≤95 %
Communication protocol
C-NET
Alarm current
1.2 mA
Number of sounds
11
Quiescent current
150 µA
Ext. alarm indicator
2
System compatibility
C-NET -> FS720
Color
white, ∼RAL 9010
Dimensions (W x H x D)
175 x 117 x 29 mm
